Material : Hot rolled wide flange I-beams with parallel flanges, heavy type (HEB / IPB range)
STEEL QUALITY : S235JRG2 acc. to EN 10025 (RSt 37,2 acc. to DIN 17100). S355JR, S355J2, S355J0
LENGTH : Beam length 6 or 12 m
TOLERANCES : Acc. to DIN 1025/2.
| HEM | Weight | Dimensions-Permastat mm | Cross Section | Section Modulus | ||||
|---|---|---|---|---|---|---|---|---|
| Pesha | Seksioni Tërthor | Momentet e Rezistences | ||||||
| Kg/m | cm2 | cm3 | ||||||

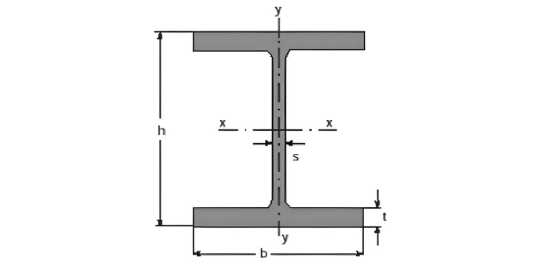

| h | b | s | t | F | Wx | Wy | ||
|
100 |
42.6 |
120 |
106 |
12 |
20 |
53.2 |
190.4 |
75.31 |
|
120 |
53.1 |
140 |
126 |
12.5 |
21 |
66.4 |
288.2 |
111.6 |
|
140 |
64.4 |
160 |
146 |
13 |
22 |
80.6 |
411.4 |
156.8 |
|
160 |
77.6 |
180 |
166 |
14 |
23 |
97.1 |
566.5 |
211.9 |
|
180 |
90.6 |
200 |
186 |
14.5 |
24 |
113.3 |
748.3 |
277.4 |
|
200 |
105 |
220 |
206 |
15 |
25 |
131.3 |
967.4 |
354.5 |
|
220 |
120 |
240 |
226 |
15.5 |
26 |
149.4 |
1217 |
443.5 |
|
240 |
160 |
270 |
248 |
18 |
32 |
199.6 |
1799 |
657.5 |
|
260 |
176 |
290 |
268 |
18 |
32.5 |
219.6 |
2159 |
779.7 |
|
280 |
192 |
310 |
288 |
18.5 |
33 |
240.2 |
2551 |
914.1 |
|
300 |
242 |
340 |
310 |
21 |
39 |
303.1 |
3482 |
1252 |
|
320 |
250 |
359 |
309 |
21 |
40 |
312 |
3796 |
1276 |
|
340 |
253 |
377 |
309 |
21 |
40 |
315.8 |
4052 |
1276 |
|
360 |
255 |
395 |
308 |
21 |
40 |
318.8 |
4297 |
1268 |
|
400 |
261 |
432 |
307 |
21 |
40 |
325.8 |
4820 |
1260 |
|
450 |
268 |
478 |
307 |
21 |
40 |
335.4 |
5501 |
1260 |
|
500 |
275 |
524 |
306 |
21 |
40 |
344.3 |
6180 |
1252 |
|
550 |
284 |
572 |
306 |
21 |
40 |
354.4 |
6923 |
1252 |
|
600 |
291 |
620 |
305 |
21 |
40 |
363.7 |
7660 |
1244 |
|
650 |
299 |
668 |
305 |
21 |
40 |
373.7 |
8433 |
1245 |
|
700 |
306 |
716 |
304 |
21 |
40 |
383 |
9198 |
1240 |
|
800 |
323 |
814 |
303 |
21 |
40 |
404.3 |
10870 |
1230 |
|
900 |
339 |
910 |
302 |
21 |
| |||
